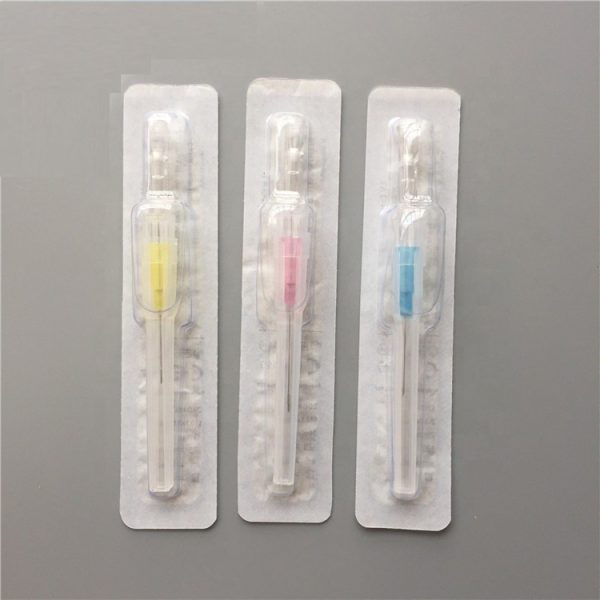

Tuoren Pen-Type IV Cannula (Straight Type)
- Description
Description
Tuoren Pen-Type IV Cannula (Straight Type) is a sterile, single-use intravenous catheter engineered for streamlined, low-profile vascular access without lateral wings or injection ports. Featuring an ultra-sharp, siliconized back-bevel needle and a kink-resistant PTFE catheter, this straight-body cannula offers minimal insertion drag, rapid flashback visualization, and secure Luer connection. Available with or without a sterile Heparin Cap, Tuoren pen-type cannulas are widely used across emergency units, surgical theaters, and hospital wards in Pakistan.
CE Mark Approved
DRAP Registered (Form-5A / Class IIb)
With / Without Heparin Cap
EO Sterile Packaging
Technical Specifications & Design Architecture
| Product Line | Tuoren Pen-Type IV Cannula (Straight Body, Non-Winged, Non-Ported) |
| Closure Configuration | Available with Sterile Heparin Cap (Yellow Stopper) or Standard Luer Lock Plug |
| Catheter Material | Medical Grade PTFE (Teflon) / FEP with embedded radio-opaque stripes for radiographic visibility |
| Needle Metallurgy | Siliconized AISI 304 surgical stainless steel with precision back-bevel cutting edge |
| Hub Structure | Straight cylindrical pen-grip barrel made of clear medical-grade polypropylene (PP) |
| Flashback Chamber | Optically clear chamber with hydrophobic air-permeable membrane plug for prompt blood return |
| Gauge Range | 16G, 18G, 20G, 22G, 24G, 26G (ISO standard color-coded hub) |
| Packaging Configuration | 50 Pcs per Inner Dispenser Box | 1,000 Pcs per Master Shipping Carton (20 boxes/carton) |
| Sterilization Method | 100% Ethylene Oxide (EO Gas), Non-pyrogenic & Non-toxic |
| Regulatory Standards | CE Marked, ISO 13485:2016, DRAP Registered (Class IIb Medical Device) |
Gauge Size Specifications & Infusion Flow Rates
| Gauge | ISO Color | External Diameter x Length | Flow Rate | Primary Clinical Application |
|---|---|---|---|---|
| 16G | Grey | 1.8 mm x 45 mm | 200 ml/min | Trauma Care & Major Surgical Infusions |
| 18G | Green | 1.3 mm x 45 mm | 90 ml/min | Blood Transfusions & Operating Theaters |
| 20G | Pink | 1.1 mm x 32 mm | 61 ml/min | Routine Adult Intravenous Infusions & Medications |
| 22G | Blue | 0.9 mm x 25 mm | 36 ml/min | Geriatric Patients & Smaller Peripheral Veins |
| 24G | Yellow | 0.7 mm x 19 mm | 20 ml/min | Pediatric Vascular Access & Fragile Veins |
| 26G | Purple | 0.6 mm x 19 mm | 15 ml/min | Neonatal Intensive Care Units (NICU) |
Clinical Benefits of Tuoren Pen-Type Straight Cannulas
- Streamlined Pen-Grip Handling: Straight barrel design provides tactile control preferred by many anesthetists and clinicians for precise cannulation.
- Low-Profile Design: Absence of side wings and top injection ports prevents pressure ulceration and snagging during extended inpatient immobilization.
- Atraumatic Needle Penetration: Micro-siliconized needle bevel minimizes venipuncture resistance, reducing hematoma formation and vessel wall irritation.
- Smooth Catheter Transition: Double-tapered PTFE catheter tip enters the skin cleanly without peel-back or dragging.
- Wholesale Packaging Standard: 50 units per dispenser shelf box and 1,000 units per master shipping carton for efficient hospital pharmacy dispensing.
For ported alternatives with wings, explore our Tuoren IV Cannula with Injection Port.
Clinical Applications & Institutional Supply
The Tuoren Pen-Type Straight IV Cannula is tailored for high-volume emergency departments, anesthesia suites, and oncology wards where compact, non-bulky vascular access is paramount. When secured under standard transparent dressing films, the straight design lies flat against the patient’s forearm or hand, drastically cutting down movement-related phlebitis. Pre-packed with or without a sterile Heparin Cap, it enables effortless intermittent heparinization and periodic flushing between drug doses. Standardized packing of 1,000 units per corrugated carton ensures compliance with government tenders and institutional purchase frameworks across Pakistan.
Frequently Asked Questions on Pen-Type Cannula Procurement
Q1: What are the packaging specifications for Tuoren Pen-Type Cannulas?
Supplied with 50 pieces per inner dispenser box and 1,000 pieces per master carton (20 boxes/carton), optimized for institutional inventory management and tender supply.
Q2: Is this straight cannula supplied with a Heparin Cap?
Yes, we supply Tuoren Pen-Type Cannulas both with an included Heparin Cap (injection stopper) or with a standard Luer plug to suit specific departmental tenders and requirements.
Q3: What regulatory certifications back Tuoren Pen-Type Cannulas in Pakistan?
Tuoren Pen-Type Cannulas are CE marked, manufactured under ISO 13485:2016 quality management standards, and fully registered with the Drug Regulatory Authority of Pakistan (DRAP) as Class IIb medical devices.
Tender & Wholesale Hospital Procurement:
M. Islam & Sons is an authorized direct distributor supplying provincial healthcare institutions, operating theaters, and medical complexes across Pakistan. Contact our sales desk for bulk carton pricing, framework contracts, and trial evaluation samples.
