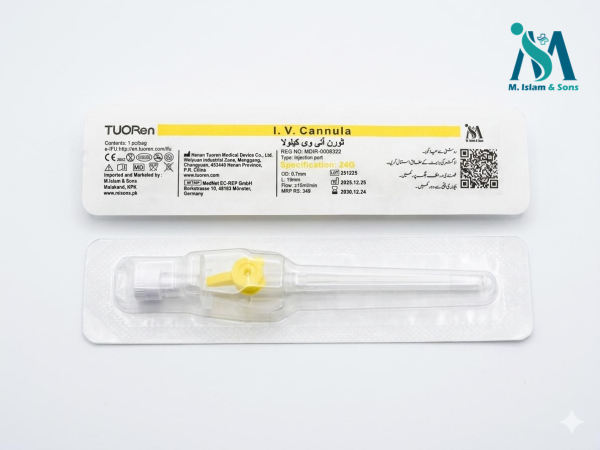

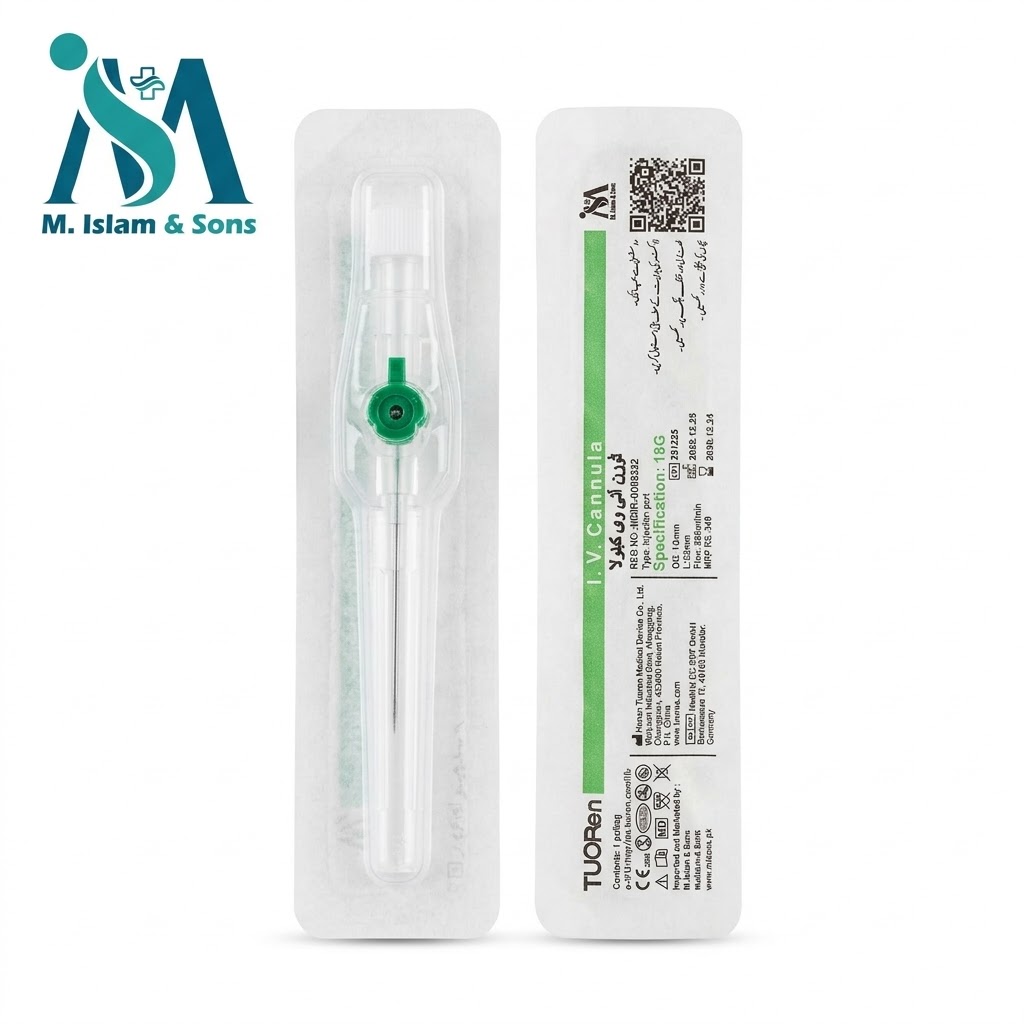

Tuoren IV Cannula with Injection Port
- Design: Ported IV cannula with integrated one-way back-check injection valve
- Closure Options: Available with or without detachable Heparin cap / luer stopper
- Needle & Catheter: Back-beveled siliconized stainless steel needle with kink-resistant FEP/PTFE catheter
- Gauges Available: 16G (Grey), 18G (Green), 20G (Pink), 22G (Blue), 24G (Yellow), 26G (Violet)
- Compliance: DRAP registered, ISO 13485, CE marked
Product Overview
Tuoren ported intravenous cannulas are engineered for peripheral vascular access, continuous infusion, blood transfusion, and intermittent bolus drug administration. Manufactured under strict cleanroom standards and distributed across tertiary healthcare networks by M. Islam & Sons.
Key Clinical & Technical Features
- One-Way Injection Port: Color-coded snap-fit cap allows direct bolus syringe delivery without secondary venipuncture or blood backflow.
- Heparin Cap Compatibility: Secure luer lock closure accommodating standard intermittent flushing protocols.
- Atraumatic Needle Geometry: Triple-facet bevel reduces tissue displacement and initial puncture pain.
- Catheter Integrity: Medical-grade biocompatible fluoropolymer ensures kink-free fluid flow and lowers thrombophlebitis risks.
- Instant Optical Flashback: Clear flashback chamber guarantees immediate confirmation of vascular entry.
Standard Gauge Specifications
- 16G (Grey): Rapid fluid volume resuscitation, major trauma, blood transfusion
- 18G (Green): General surgical infusion, emergency fluids, blood products
- 20G (Pink): Routine adult clinical infusions, medical wards
- 22G (Blue): Geriatric patients, small or fragile peripheral veins
- 24G (Yellow): Pediatric venipuncture and fragile vasculature
- 26G (Violet): Neonatal and extremely fine venous access
Packaging & Sterility
Individually sealed in medical-grade blister packaging. Non-toxic, non-pyrogenic, and sterilized using Ethylene Oxide (EO) gas.
Institutional Procurement & Tenders
Approved for public tenders, institutional rate lists, and bulk hospital supply nationwide under valid DRAP establishment licensing, ISO 13485, and CE quality standards.
- Description
- Additional information
Description
Tuoren IV Cannula with Injection Port is a sterile, single-use intravenous catheter engineered for rapid, atraumatic vascular access and intermittent medication delivery. Available in configurations with an integrated Heparin Cap or without Heparin Cap, the Tuoren ported cannula features a precision back-bevel needle, flexible wings, and an integrated one-way silicone non-return injection valve, ensuring smooth venipuncture, minimal vein trauma, and leak-free fluid infusion across healthcare institutions in Pakistan.
CE Mark Approved
DRAP Registered (Form-5A / Class IIb)
With / Without Heparin Cap Options
EO Sterile Packaging
Technical Specifications & Design Architecture
| Product Name | Tuoren IV Cannula with Injection Port and Wings |
| Closure Configuration | Offered With Heparin Cap (Yellow Injection Stopper) or Without Heparin Cap (Standard Luer Lock Cap) |
| Catheter Material | Medical Grade PTFE (Teflon) / FEP with embedded radio-opaque stripes for X-ray visualization |
| Needle Metallurgy | Siliconized AISI 304 surgical stainless steel with precision back-bevel cut |
| Injection Port Valve | Integrated one-way duckbill silicone non-return valve for intermittent bolus injections |
| Hub & Wings Design | Medical-grade Polypropylene (PP) with flexible, angled wings for anatomical fixation |
| Flashback Chamber | Clear transparent viewing chamber with hydrophobic air-permeable vent plug |
| Gauge Range | 14G, 16G, 18G, 20G, 22G, 24G (ISO color-coded standard) |
| Packaging Configuration | 50 Pcs per Inner Dispenser Box | 1,000 Pcs per Master Shipping Carton (20 boxes/carton) |
| Sterilization Method | 100% Ethylene Oxide (EO Gas), Non-pyrogenic & Non-toxic |
| Regulatory Standards | CE Marked, ISO 13485:2016, DRAP Registered (Class IIb Medical Device) |
Gauge Size Specifications & Flow Rates
| Gauge | ISO Color | External Diameter x Length | Water Flow Rate | Primary Clinical Application |
|---|---|---|---|---|
| 14G | Orange | 2.1 mm x 45 mm | 305 ml/min | Emergency Resuscitation & Rapid Massive Transfusion |
| 16G | Grey | 1.8 mm x 45 mm | 200 ml/min | Trauma Care, Major Surgical Operations |
| 18G | Green | 1.3 mm x 45 mm | 90 ml/min | Blood Transfusion & Standard Surgical Infusions |
| 20G | Pink | 1.1 mm x 32 mm | 61 ml/min | Routine Adult Intravenous Fluid & Drug Administration |
| 22G | Blue | 0.9 mm x 25 mm | 36 ml/min | Geriatric Patients & Fragile Superficial Veins |
| 24G | Yellow | 0.7 mm x 19 mm | 20 ml/min | Pediatric & Neonatal Vascular Access |
Clinical Benefits of Tuoren Ported IV Cannulas
- Flexible Closure Options: Available with a resealable rubber Heparin Cap for repeated intermittent flushing or with a standard Luer Lock plug depending on departmental protocol.
- Atraumatic Needle Tip: Tri-bevel ground stainless steel needle ensures ultra-smooth venipuncture with minimal penetration resistance and reduced patient pain.
- Kink-Resistant Catheter: Smoothly tapered PTFE/FEP catheter tip aligns flush with needle bevel to eliminate peeling, curling, or venous shearing during entry.
- Needle-Free Medication Port: Built-in injection port with snap-cap allows direct syringe access for bolus drugs without disturbing primary line infusions.
- Instant Flashback Detection: Optical transparency in the flash chamber confirms blood return immediately upon entering the vessel lumen.
- Standardized Packaging: Packed 50 pieces per shelf box and 1,000 pieces per shipping carton for accurate ward dispensing and stock accountability.
For surgical wound closure after clinical procedures, browse our RTMED Nylon Monofilament Sutures.
Clinical Handling, Heparinization & Packaging Standards
Tuoren IV Cannulas with injection ports are designed to accommodate diverse hospital nursing protocols across Pakistan. When continuous IV infusions are paused, models equipped with a Heparin Cap allow medical staff to flush and heparinize the line through the self-sealing injection membrane without taking down the catheter hub, effectively preventing intraluminal thrombosis. For facilities that utilize standard infusion sets and extension lines, the non-heparin cap version provides a secure, leak-free Luer Lock seal. Inner dispenser boxes contain exactly 50 pieces, while wholesale supply is packaged in 1,000-piece heavy-duty shipping cartons (20 boxes) to ensure barrier integrity during transit and storage.
Frequently Asked Questions on Tuoren IV Cannula Procurement
Q1: Is Tuoren IV Cannula available with a Heparin Cap?
Yes. We supply Tuoren IV Cannulas both with a Heparin Cap (for intermittent medication and heparin locking) and without a Heparin Cap (with standard protective Luer plug) to match hospital tender specifications and clinician preference.
Q2: What are the packaging dimensions and carton quantities?
Tuoren IV Cannulas are supplied with 50 pieces per inner dispenser box and 1,000 pieces per master carton (20 dispenser boxes), ensuring accurate hospital store accounting and bulk transport safety.
Q3: What regulatory approvals does Tuoren IV Cannula carry in Pakistan?
Tuoren IV Cannulas are CE marked, manufactured under ISO 13485:2016 standards, and registered with the Drug Regulatory Authority of Pakistan (DRAP) under Class IIb medical device rules.
Tender & Wholesale Hospital Procurement:
M. Islam & Sons is an authorized direct distributor supplying provincial healthcare directorates, emergency trauma centers, and private clinical complexes across Pakistan. Contact our procurement team for carton-rate pricing, framework contracts, and trial evaluation samples with or without heparin caps.
Additional information
| Gauge / Size | 16G (Grey), 18G (Green), 20G (Pink), 22G (Blue), 24G (Yellow), 26G (Violet) |
|---|
